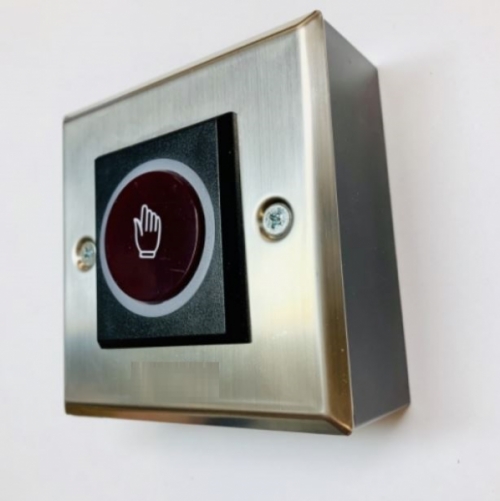

[62424] PP-500P Exit buttonfor surface mounting, PIR- switch 12-24VDC
Features
Exit button is particularly suited for controlling lock magnets, electric strikes and solenoid latches.
The changeover contact allows for compatibility with most targets requiring potential-free contact information.
Applications such as hospitals, laboratories and others. high-hygiene items, restaurants, stores, service areas, etc.
Infrared technology means that there are no wear-resistant components, such as switches or springs, and the button does not have to be touched.
Adjustable touch range 0-10cm.
Technical specifications
Installation: Flush mounting
Contact function: Changeover contact
Number of contacts: 1 pcs
Wiring: 5 pcs 15cm wires
Infrared range adjustment: 0 to 100mm

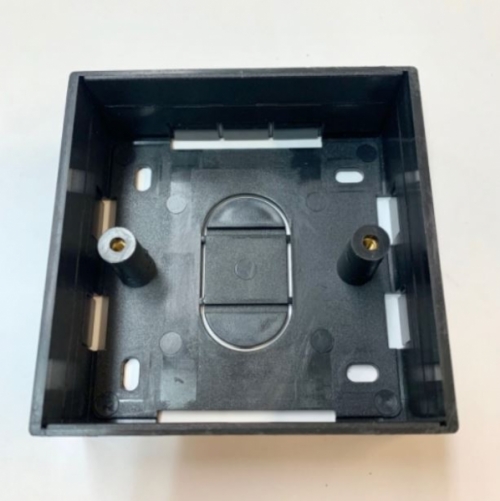

Material: Steel, surface mounting frame black plastic
Operating voltage: 12-24VDC
Dimensions: 86 x 86 x 42mm
Contact rating: 3A, 30VDC
Operating temperature: -20 C to 50 C
Button Function: Infrared Switch

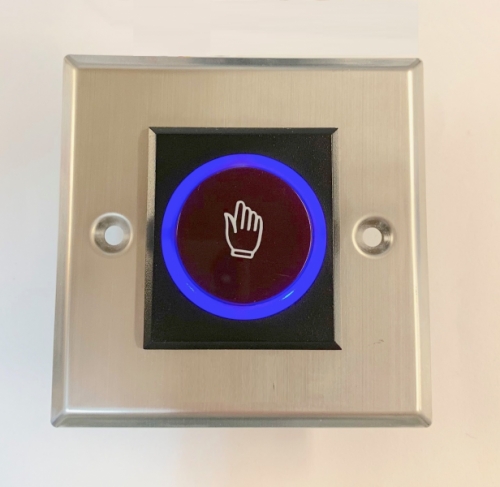

Led blue: Device in standby
Led green: In action
If delay is required, use product #23050
