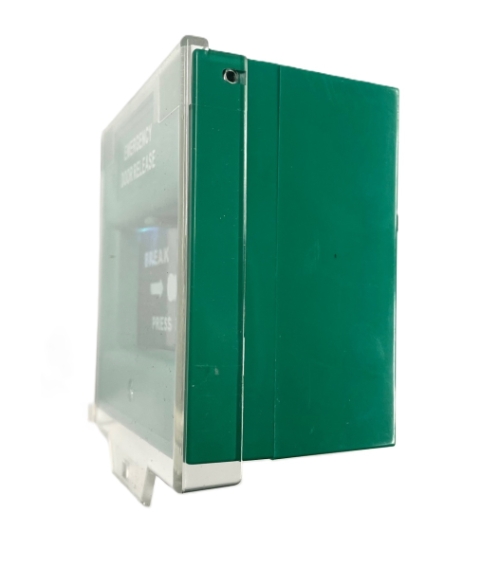

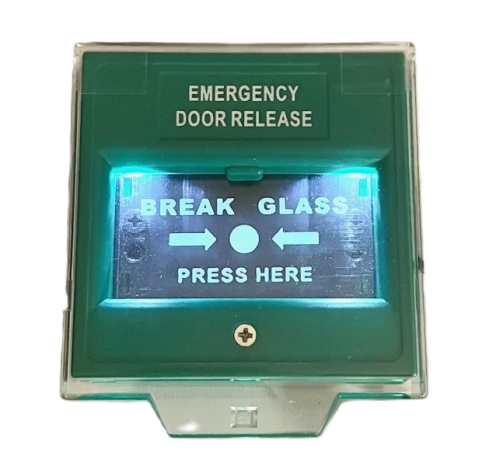

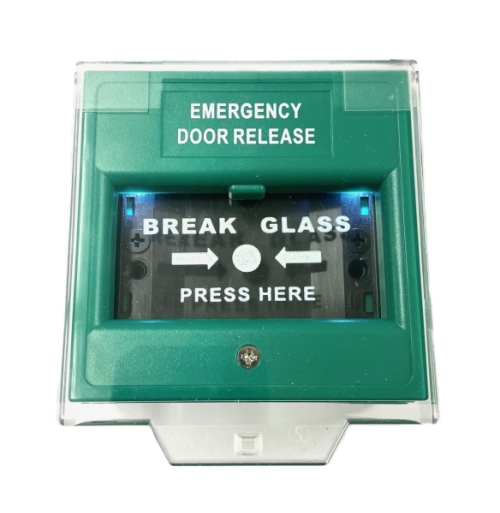

HL5030MG4L Call point green with led lights
[60750] HL5030MG4L Call point green with led lights
Features
The release button command is given manually to the control center or the actuator.
It can control, for example, magnetic locking, reversible solenoid locks,
smoke extraction, air conditioning and various alarms.
Technical specifications
Installation: Flush/surface installation
Operating voltage: 12-24VDC
Current consumption: 25mA/12VDC, 45mA/24VDC
Contact function: 4 pcs changeover contacts
Color: Green
Number of contacts: 4 pcs
Connectors: max. 2.5 mm²
Microswitch contact rating: 150mohm
Material: Polyphenylene plastic
Dimensions: (h x w) 87x87mm
Contacts max. current rating: 2A 30VDC
Max. humidity: 95%
Operating temperature: -10C to +40C
Contact material: Silver
Approvals: CE, Rohs
Includes a clear cover and an reset/test key
