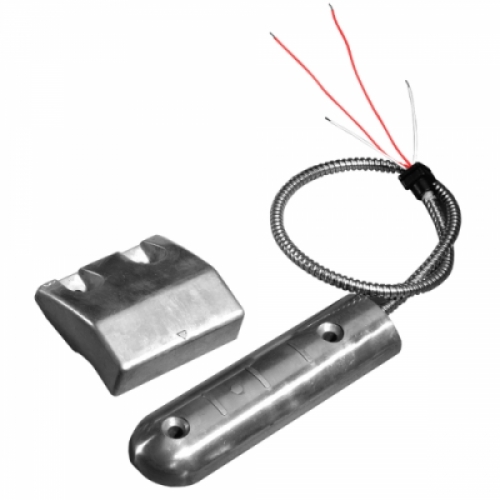

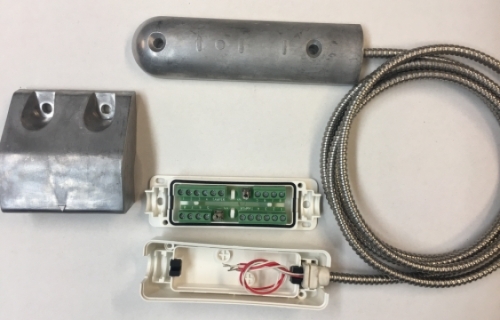

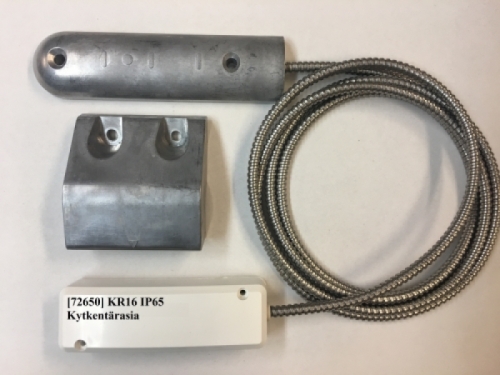

[72580] DCF102 Overhead door magnetic contact,1x NC, 2m armoured cable, operating gap 50mm
Features
The magnet contact consists of two parts, the magnet contact itself and the permanent magnet.
The contact and magnet are mounted on the fixed and movable part of the subject being monitored.
The circuit breaker remains closed at the magnetic field force.
As the spacing of the contact elements increases, the circuit breaker magnetic field decreases and the circuit breaker opens.
This gives the actuator contact information.
Rubber spacer #40338 also available for demanding conditions.
Technical specifications
Contact function: Normally closed (N.C.)
Material: Aluminum
Dimensions:
Magnetic contact 150 x 40 x 15mm
Magnet 75 x 60 x 32mm
Operating temperature: -40 ° C to + 50 ° C
Operating voltage: 1-30V DC/ AC
Switching current: 500mA DC/ AC
Operating distance: approx. 50mm
Protection class IP67
Cable: 4-pole, 2m armoured.
Tamper switch
